BillyOh Pathfinder 'Huntsman' Log Cabins

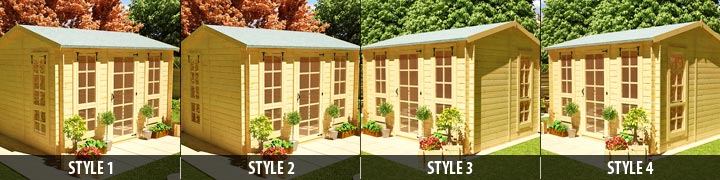

This modern designed version of a classic style log cabin further demonstrates BillyOh's growing standing as a leading manufacturer of log cabins. The BillyOh Pathfinder Huntsman Log Cabin is a compact yet stylish building. It has been designed with the current economic climate in mind, without compromising on quality and design aesthetics. The combination of either a single or double fully glazed door and full length windows ensure a light and airy ambiance inside.
Overview
Not detracting away from the building itself, this log cabin provides generous interior space and the well crafted features such as the three full length windows which filter light into the interior adding a heightened sense of space. We believe this building to be a perfect garden office area away from the distractions that can be encountered when working at home, while also working perfectly as a Hobby room, den or Summerhouse with plenty of natural light.
Underpinning this unique log cabin concept at this amazing price is second to none craftsmanship highlighted by the use of interlocking construction maximising the structural integrity of this 19mm cladded garden building.
Features
The cabin itself has a generous interior space and well crafted features such as the styrene glazed full length Georgian windows and doors, which allow daylight to stream in to the building, and intricate details such as antique styled handles and hinges. The traditional roof pitch provides a high ridge height providing plenty of head clearance for the average height adult.
The Huntsman has been designed so the windows are interchangeable. This allows you to position the side window on either of the side walls.
-19mm.jpg)

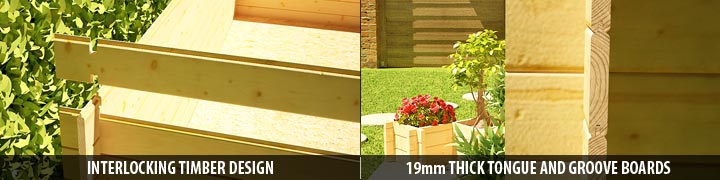

19mm Interlocking Boards - Single T&G for stability and durability.
-TandG.jpg)
11mm T&G Floor - We Provide you with T&G floor boards, which provide a sturdy and aesthetic finish.
11mm T&G Roof - The roof is constructed using 11mm Tongue and Groove boards nailed into place on pre-cut roof purlins.
-Styrene.jpg)
Styrene Glazed Doors/Windows - There are a total of 3 windows; 1 Windows on each side and 2 windows on the front, which have a fixed bottom section and bottom opening section; all are constructed with integral Georgian styled glazing bars. Glazing comes as a single sheet for ease of assembly.
-double-full.jpg)
Huntsman I: Fully Glazed Style Single Door - This provide plenty of light with integral Georgian glazing bars as standard. Glazing comes as a single sheet for ease of assembly.
Huntsman II: Fully Glazed Style Double Door - These provide plenty of light with integral Georgian glazing bars as standard. Glazing comes as a single sheet for ease of assembly.
-ENG.jpg)
Traditional Styled Roof Line - Roofline similar to tradtional English houses.
-felt.jpg)
Roofing Felt as Standard - The Pathfinder Huntsman I and II come as standard with all felt covering and fixings as standard at no extra cost. The felt used is a green mineral felt which is of higher grade than cheaper felt types such as sand felt.
Designed and Made in England - The BillyOh Pathfinder Huntsman I and II have both been designed using state of the art software in the UK and manufactured in our own UK based factory.
Construction
The BillyOh Huntsman I Log Cabin is an ideal building to extend your living space into your garden in a cost effective and impressive way, utilising interlocking 19mm tongue and groove timbers to fashion a strong and secure structure. The Huntsman comes with a T&G floor and roof for a better aesthetic finish and stronger construction.
Building Dimensions
Huntsman I: Overall External Building Width - Metric: 3.246m/Imperial: 10' 8" (Includes all Overhang Externals). / Huntsman II: Overall External Building Width - Metric: 3.883m/Imperial: 12' 9" (Includes all Overhang Externals).
Huntsman I: Overall External Building Depth - Metric: 2.787m/Imperial: 9' 2" (Includes all Overhang Externals). / Huntsman II: Overall External Building Depth - Metric: 3.452m/Imperial: 11' 4" (Includes all Overhang Externals).
Huntsman I and II: Overall External Building Ridge Height - Metric: 2.319m/Imperial: 7' 7"
Huntsman I and II: Overall External Building Eaves Height - Metric: 1.9m/Imperial: 6' 3"
Huntsman I: Internal Width - Metric: 3.022m/Imperial: 9' 11" / Huntsman II: Internal Width - Metric: 3.659m/Imperial: 12' 0"
Huntsman I: Building Internal Depth - Metric: 2.386m/Imperial: 7' 10" / Huntsman II: Building Internal Depth - Metric: 3.028m/Imperial: 9' 11"
Huntsman I: Roof Front Overhang - Metric: 0.182m/Imperial: 0' 7" / Huntsman II: Roof Front Overhang - Metric: 0.193m/Imperial: 0' 8"
Huntsman I: Door Opening Width - Metric: 0.745m/Imperial: 2' 5" / Huntsman II: Door Opening Width - Metric: 1.49m/Imperial: 4' 11"
Huntsman I and II: Door Opening Height - Metric: 1.73m/Imperial: 5' 8"
Only Huntsman I Optional Verandah Enclosed Floor Width - Metric: 3.022m/Imperial: 9' 11"
Only Huntsman I Optional Verandah Enclosed Floor Depth - Metric: 0.878m/Imperial: 2' 11"
What’s included?
- Complete wood pack to assemble all walls, roof and floor
- Partially assembled doors and windows
- Full Stage by Stage Assembly Instructions
- Fixtures and Fittings
- Roofing Felt
- Styrene Window & Door Glazing
Easy Assembly and Maintenance
Full Self-assembly instructions are supplied with your order along with all the required fixtures and fittings. Simply build the floor, add the surrounds and place the walls level by level to create your new building.We recommend you treat the building following construction with a high quality preservative for maximum durability.
PLEASE NOTE: All dimensions stated are approximate and based on the outer external measurements of the Log Cabin.
PLEASE NOTE: The Verandah option is currently only available on the Huntsman I.
Please Note: It is always advisable to contact your local Planning Authority to ascertain whether or not planning permission may be required for your garden building.
Why buy this product?
- The modern aesthetic and eye catching version of the traditional styled roof
- Stylish yet compact design perfect for a multitude of garden sizes
- A highly versatile building, with a number of uses ranging from a classy summerhouse or perfect painting studio to a modern garden office all with plenty of natural light.
- Comprehensive Stage-by-Stage instructions with specific technical details.
- 19mm Solid construction
- Included felt covering

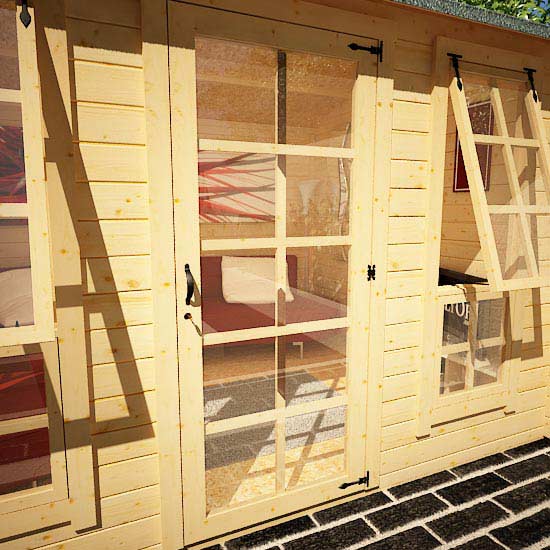

Fully Glazed Door
The Huntsman utilises a fully glazed georgian styled door, allowing lots of natural light into the cabin. The door is hung using traditional styled hinges.

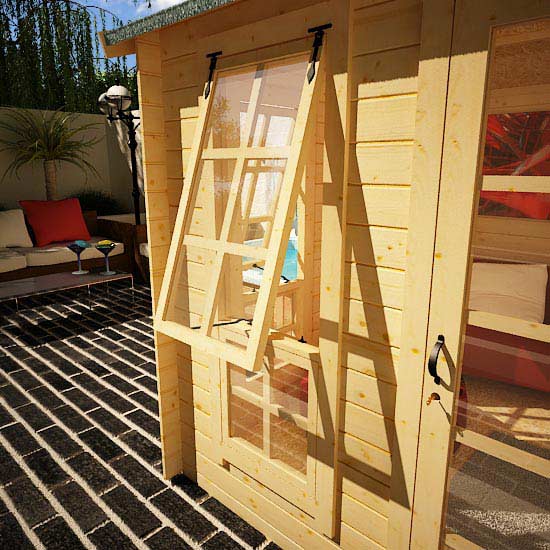

Extended Window
Floor to ceiling georgian bared windows allow more natural light into to the BillyOh log cabin whilst ensuring a classic traditional design aesthetic is maintained. The top section of the window is bottom opening where as the bottom section of the window remains fixed.

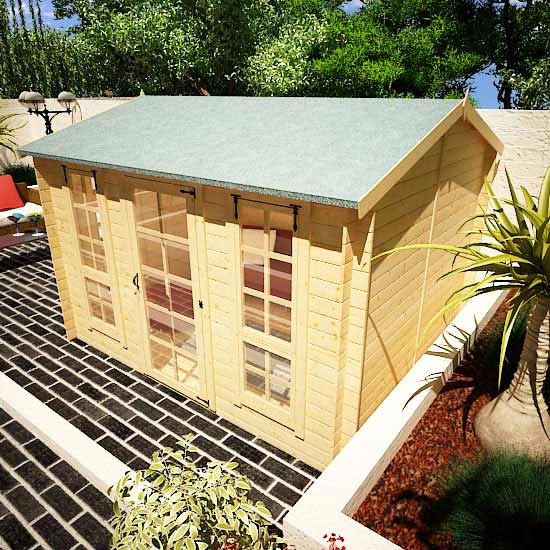

Construction
All parts of this cabin are constructed using modern wood working equipment. The 19mm interlocking timbers together with substantial framing ensure that the building is both stable and rigid.

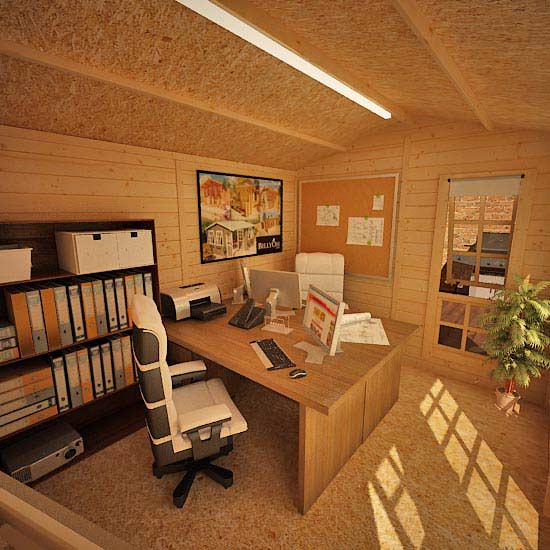

Building Versaillity
The spacious interior ensures that BillyOh Huntsman has a multitude of different uses, from a relaxing lounge to a beautiful home office. The side window can be positioned to the right or left side of the cabin enabling it to be adapted to fit into your garden.

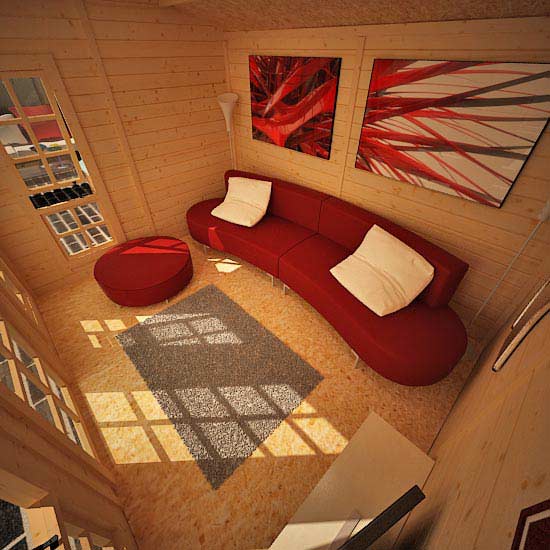

Interior
The eaves and ridge height ensure that most adults can stand up comfortably inside while ensuring a cosy warm internal environment.

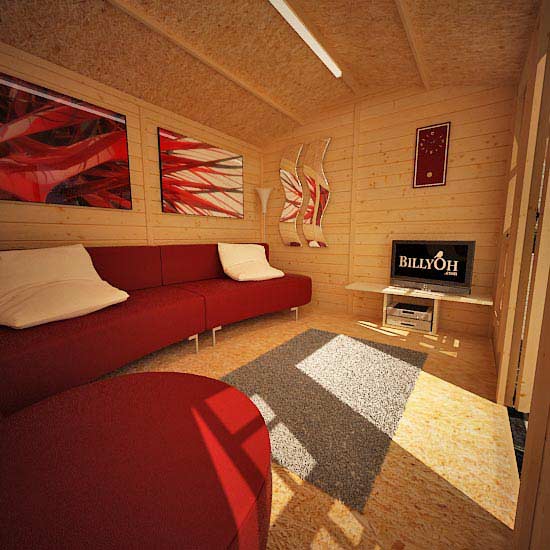

Floor and Roof
The floor and roof of this building are all constructed from Tongue and Groove boards to maintain strength and rigidity. This adds to the overall appearance of the building and gives added durability
Building Layout
Every BillyOh log cabin comes with all of the construction elements to make the building; windows, doors, roof, floor, walls, glazing, mineral felt and all fixtures and fittings and instructions

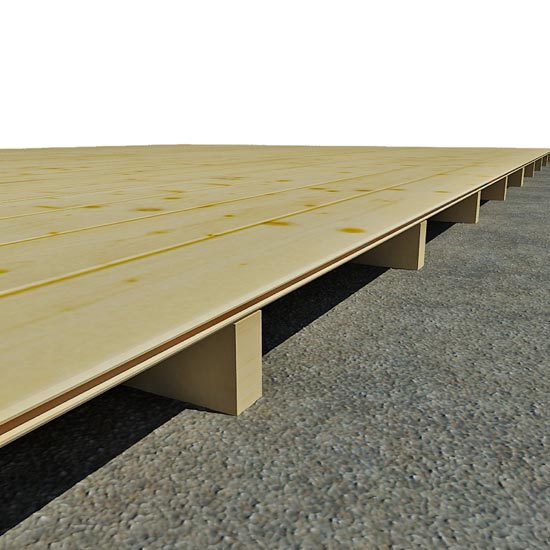

Braced Floor
Each of our BillyOh log cabins are supplied with an interlocking tongue and groove floor which is supported with strong floor bearers giving a greater load capacity and reducing any floor bounce
Technical Specifications
Show Measurements as:| Dimensions: | 3.0 x 2.5m | 3.5 x 3.0m |
|---|---|---|
| Cladding Thickness | 1.9cm 1" | 1.9cm 1" |
| Width | 324.6cm 10'8" | 388.3cm 12'9" |
| Depth | 278.7cm 9'2" | 345.2cm 11'4" |
| Ridge Height (Inc Floor) | 231.9cm 7'7" | 231.9cm 7'7" |
| Eaves Height (Inc Floor) | 190cm 6'3" | 190cm 6'3" |
| Width (Internal) | 302.2cm 9'11" | 365.9cm 12' |
| Depth (Internal) | 238.6cm 7'10" | 302.8cm 9'11" |
| Glazing Thickness | 0.15cm | 0.15cm |
| Door Opening Size (w x h) | 74.5cm x 173cm 2'5" x 5'8" | 154cm x 173cm 5'1" x 5'8" |
| Cladding Sizes Available | 19mm 19mm | 19mm 19mm |
| Window Dimensions | 42cm x 150cm 1'5" x 4'11" | 42cm x 150cm 1'5" x 4'11" |
| Glazing Thickness | 0.15cm | 0.15cm |
| Front Roof Overhang | 18.15cm 7" | 18.15cm 7" |
| Materials: | 3.0 x 2.5m | 3.5 x 3.0m |
|---|---|---|
| Glazing Material | Styrene Styrene | Styrene Styrene |
| Material | Graded European Softwood Graded European Softwood | Graded European Softwood Graded European Softwood |
| Glazing Material | Styrene Styrene | Styrene Styrene |
| Floor Material | Tongue & Groove Tongue & Groove | Tongue & Groove Tongue & Groove |
| Roof Material | Tongue & Groove Tongue & Groove | Tongue & Groove Tongue & Groove |
| Roof Covering Material | Green Mineral Felt Green Mineral Felt | Green Mineral Felt Green Mineral Felt |
| Features: | 3.0 x 2.5m | 3.5 x 3.0m |
|---|---|---|
| Cladding Style | Tongue and Groove Interlocking Boards Tongue and Groove Interlocking Boards | Tongue and Groove Interlocking Boards Tongue and Groove Interlocking Boards |
| Windows | 3 opening windows 3 opening windows | 3 opening windows 3 opening windows |
| Veranda Available? | Optional Optional | No No |
| Overhang Style | Traditional Styled Overhang Traditional Styled Overhang | Traditional Styled Overhang Traditional Styled Overhang |
| Approx. Assembly Time: | Building Assembly: 1 Day assembly based on 2 people with woodworking knowledge Building Assembly: 1 Day assembly based on 2 people with woodworking knowledge | Building Assembly: 1 Day assembly based on 2 people with woodworking knowledge Building Assembly: 1 Day assembly based on 2 people with woodworking knowledge |
| Pre-Assembled Side Panels | No No | No No |
| Factory Basecoat Treatment | Untreated Untreated | Untreated Untreated |
Please Note: This product has been designed as an affordable solution to most popular light domestic uses. All products supplied self assembly flat packed unless otherwise stated.
