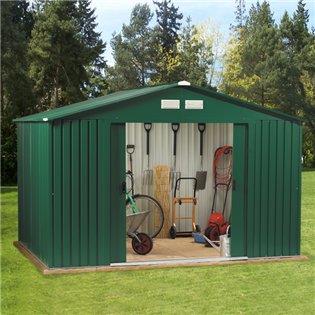

BillyOh Clifton 10' Fronted Premium Metal Sheds
Space
We believe that the CLIFTON sheds are probably the best looking metal sheds on the market. We have carefully checked CLIFTON’s INSIDE floor measurements with competitive makes to find that the CLIFTON 10 x 8 and 10 x 10 provide MORE INSIDE floor space of 7.6% and 8.8% respectively. Additionally, the CLIFTON sheds feature a generous 165cm wall height thus giving more headroom at 197cm from base to underneath the centre roof beam.
Strength
Most Important: The deep roll-formed wall and roof panels provide unique strength unlike shallow formed clad sheds.
Base
Please ensure that when you build your concrete or flagstone base to insert a strong plastic membrane BELOW the concrete or flagstones to prevent rising damp. Build your base NO more than 30mm larger all round than the BASE measurements given below under TECHNICAL INFORMATION to allow rainwater discharging proud off your base at the sides of the CLIFTON.
Instructions
Comprehensive, illustrated step-by-step user instructions supplied.
Please Note: If you order a 10 x 10 size shed you will receive a 10 x 8 size shed PLUS a 2’ extension kit to make it a 10 x 10. If you order a 10 x 12 you will get a 10 x 8 size shed PLUS 2 x 2’ extension kit to make it a 10 x 12 shed.
Optional Metal Shed Tongue and Groove Base Information
A pre-made Tongue & Groove flooring constructed to take a greater load capacity and provide better damp proofing ensuring protection of your contents.
If the tongue and groove base option is selected, woodscrews and washers must be used (we cannot supply) to attach the shed to the timber floor. Woodscrews go through the shed's inner base rail holes with the washer for each screw securing adequate purchase between wood screw/base rail/timber floor.
- Greater load capacity
- Secure your contents
What is a ‘Steel Foundation Kit’ and do I need one?
It is a quick and easy way to create a suitable base for your metal shed after you have leveled your site and inserted a DPC below the foundation kit.
It is manufactured using heavy-duty ‘U’ channel framing, made from durable hot-dipped galvanized steel. The assembled foundation kit receives the shed base rails and flood out with concrete after the shed assembly is completed to give the perfect base.
Please Note: The product or model name may differ on the packaging from that advertised however this does not affect the intrinsic product
Why buy a Clifton Premium Metal Shed?
- Totally MAINTENANCE-FREE
- Ribbed Wall Panels for extra strength
- Ventilation through front and rear vents
- 15 Year Warranty - No rust perforation
- Pad Lockable for Added Security
- Easier assembly
Extra Strength
Deep ribbed corrugated wall and roofing ensures added Strength and Security
Ventilation
To allow the contents to breathe without leaving the door open Ventilation from front to rear is provided by the inclusion of vents.
Larger Internal Storage
This shed provides a Larger internal floor space than many other similar sized buildings.
Maintenance Free
The building does not need to be treated
Easy Assembly
Compared to other metal sheds the Clifton is fast to build with the easy to follow instructions
Technical Specifications
Show Measurements as:| Dimensions: | 10 x 8 | 10 x 10 | 10 x 12 |
|---|---|---|---|
| Width | 322cm 10'7" | 322cm 10'7" | 322cm 10'7" |
| Depth | 243.5cm 8' | 304cm 10' | 364cm 11'11" |
| Eaves Height (Inc Floor) | 165cm 5'5" | 165cm 5'5" | 165cm 5'5" |
| Ridge Height (Inc Floor) | 210.5cm 6'11" | 210.5cm 6'11" | 210.5cm 6'11" |
| Door Opening Size (w x h) | 132cm x 159.1cm 4'4" x 5'3" | 132cm x 159.1cm 4'4" x 5'3" | 132cm x 159.1cm 4'4" x 5'3" |
| Materials: | 10 x 8 | 10 x 10 | 10 x 12 |
|---|---|---|---|
| Floor Material | None Supplied None Supplied | None Supplied None Supplied | None Supplied None Supplied |
| Material | Galvanised Steel Galvanised Steel | Galvanised Steel Galvanised Steel | Galvanised Steel Galvanised Steel |
| Roof Material | Metal Metal | Metal Metal | Metal Metal |
| Features: | 10 x 8 | 10 x 10 | 10 x 12 |
|---|---|---|---|
| Roof Style | Apex Apex | Apex Apex | Apex Apex |
| Supplied with Fixtures and Fittings | Yes Yes | Yes Yes | Yes Yes |
| Shed Type | Storage Shed, Workshop, Windowless Security Shed, Bike Storage Storage Shed, Workshop, Windowless Security Shed, Bike Storage | Storage Shed, Workshop, Windowless Security Shed, Bike Storage Storage Shed, Workshop, Windowless Security Shed, Bike Storage | Storage Shed, Workshop, Windowless Security Shed, Bike Storage Storage Shed, Workshop, Windowless Security Shed, Bike Storage |
Please Note: All products supplied self assembly flat packed unless otherwise stated.
