BillyOh Winchester 70mm Log Cabin Premium B GRADE
Overview

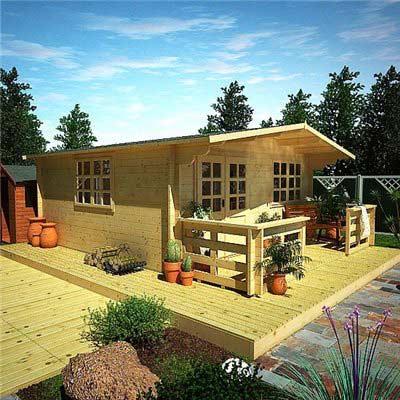

The BillyOh Winchester is a superbly built log cabin that is constructed from solid 70mm thick timbers. The alpine styled roof line is well complimented by well positioned double opening windows provide ample internal lighting while maintaining security. The Winchester is versatile enough to suite a number of outdoor building functions, expanding the available living space within your garden. This product will provide a great centre piece for the garden and will be the talk of the town with its natural finish and preserved and maintained will stand as a prominent feature for years to come.
Features
-70mm.jpg)
70mm Interlocking Boards - Double T&G for extra stability and durability.
-TandG.jpg)
28mm T&G Floor - Providing a thick and heavy duty floor supported by 2" x 3" Floor Joists.
19mm T&G Roof - Providing a thick and heavy duty roof supported by 2" x 5" Roof Purlins.
-DBL-glaze.jpg)
Double Glazed Doors/Windows - For increased insulation properties and premium build quality. There are 2 Windows, which are double opening windows complete with optional Georgian styled glazing bars.
-double-half.jpg)
Half Glazed Style Double Door - These provide plenty of light, while remaining secure using T&G boards mixed with double glazing. Comes with optional Georgian Glazing Bars to be fitted as desired.
.jpg)
Included Interlocking Verandah - Provides an external outdoor space ideal for outdoor entertaining using the same 44mm interlocking boards as the main building.
-TRAD.jpg)
Alpine Styled Roof Line - Roofline similar to alpine traditional chalets and ski lodges.
Front Overhang - This provides both shade from the sun, and cover during the frequent summer rain showers.
-Sq.jpg)
Premium Shingles Option - The roof can support our premium shingle range, which provide additional protection and increased aesthetic appeal. These come in a range of colours, see the product options for details.
Construction
With the buildings solid construction method, utilising the traditional method of interlocking logs combined with secure double locking method, maintain the buildings secure feel. The high roof-line made from substantial joists and 19mm thick T&G roof boards provides an internal feel of quality. This coupled with highly detailed crafted windows and doors, provides plenty of ambient natural light proving to be a versatile and luxurious space. The use of cutting edge technology in both the design and manufacturing processes results in a building of very high quality. The Cabin can be assembled over a period of two days, following the provided technical details and general instructions. Upon completion it is imperative that the untreated building is treated with a quality wood preservative to ensure longevity and durability for years to come. It is highly important that the building is treated upon completion and yearly thereafter to ensure durability.
Building Dimensions
Overall External Building Width - Metric: 5.30m/Imperial: 17' 5" (Includes all Overhangs and Verandah Externals).
Overall External Building Depth - Metric: 6.5m/Imperial: 21' 4" (Includes all Overhangs and Verandah Externals).
Overall External Building Ridge Height - Metric: 2.688m/Imperial: 8' 10"
Overall External Building Eaves Height - Metric: 2.125m/Imperial: 6' 11"
Building Internal Width - Metric: 4.66m/Imperial: 15' 3"
Building Internal Depth - Metric: 4.66m/Imperial: 15' 3"
Roof Front Overhang - Metric: 1.00m/Imperial: 3' 3"
Door Opening Width - Metric: 1.58m/Imperial: 5' 2"
Door Opening Height - Metric: 1.80m/Imperial: 5' 11"
Verandah Internal Floor Width - Metric: 4.660m/Imperial: 15' 3"
Verandah Internal Floor Depth - Metric: 1.5m/Imperial: 4' 11"
Please Note: It is always advisable to contact your local Planning Authority to ascertain whether or not planning permission may be required for your garden building.
Please Also Note: This item is sold as a B GRADE product which means that the stock may appear slightly weathered
Interlocking Design
The Winchester Log Cabin features an eye-catching interlocking design which ensures that this cabin is a stable, rigid structure.
Premium Tongue and Groove Roof and Floor
BillyOh log cabins use Premium (T&G) for the roof and the floors. The roof is 19mm T&G along with substantial roof supports crafted with precision CNC machining. The Floor boards are 28mm T&G boarding.
Premium Build Quality
Along with a high ceiling and spacious interior, the Winchester comes with 28mm thick floor boards, 9mm thicker than most standard buildings.
Includes Verandah
The full width 1.5m deep verandah features its own eye-catching handrail and strong decking floor boards
Double Doors
The glazed double-doors provide a versatile opening. A quality locking system ensures your belongings are secure leaving you with peace of mind. The doors come with 15mm half glazed glass as standard.
Windows
Generously proportioned side opening double windows provide light and ventilation, adding to the comfort, usability and sense of satisfaction while using the Winchester Log Cabin. The windows come with 15mm double glazed glass as standard.
70mm timber option
This log cabin is available in 70mm cladding. The benefits of this thicker timber are; improved insulation for greater control of temperature, vastly improved strength and rigidity adding to the structural integrity of the building and so aiding the log cabin's ability to cope with extreme weather conditions.
Overhang
The alpine styled overhang feature ensures considerable shade during the summer months and shelter during the wet weather.
Braced Floor
Each of our BillyOh log cabins are supplied with an interlocking tongue and groove floor which is supported with strong floor bearers giving a greater load capacity and reducing any floor bounce
Technical Specifications
Show Measurements as:| Dimensions: | 16 x 19 |
|---|---|
| Width | 500cm 16'5" |
| Depth | 600cm 19'8" |
| Ridge Height | 268.8cm 8'10" |
| Eaves Height | 212.5cm 7' |
| Door Opening Size (w x h) | 0cm x 0cm x |
| Window Dimensions | 138cm x 100cm 4'6" x 3'3" |
| Glazing Thickness | 1.5cm 1" |
| Front Roof Overhang | 100cm 3'3" |
| Materials: | 16 x 19 |
|---|---|
| Material | Pine Pine |
| Glazing Material | Double Glazed (Glass) Double Glazed (Glass) |
| Floor Material | Tongue & Groove Tongue & Groove |
| Roof Material | Tongue & Groove Tongue & Groove |
| Roof Covering Material | Optional Optional |
| Features: | 16 x 19 |
|---|---|
| Windows | 4 opening windows 4 opening windows |
| Door Style | Double Doors Double Doors |
| Veranda Available? | No No |
| Cladding Style | Tongue and Groove Interlocking Boards Tongue and Groove Interlocking Boards |
| Overhang Style | Alpine Style Overhang Alpine Style Overhang |
| Approx. Assembly Time: |
Building Assembly: 1-2 Day assembly based on 2 people with woodworking knowledge
Shingles: 1 Day based on 2 people working Building Assembly: 1-2 Day assembly based on 2 people with woodworking knowledge Shingles: 1 Day based on 2 people working |
| Pre-Assembled Side Panels | No No |
| Treatment | Untreated Untreated |
Frequently Asked Questions
-
Q: I am looking to purchase a cabin to use as an office in our garden and would like to know how easy it would be to dismantle your cabin if I wanted to move it in a year or 2?
A: You would not be able to dismantle the cabin and then assemble it again without risking damage to the cabin itself and the structure of it.
Q: What base and preparation of the area are required before erection of a log cabin can take place?
A: We recommend that for any wooden garden building, that a concrete base is laid prior to assembly. This will ensure a firm, level foundation and will support shed.
