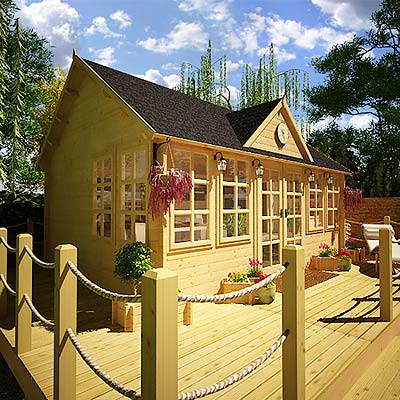

BillyOh Village Hall Log Cabin
Overview
The BillyOh Village Hall is a superbly built log cabin that is constructed from solid 44mm or 70mm thick timbers, this is an elegant, well-ventilated log cabin. The English styled roof line has been designed with additional height to ensure an internal ambiance of space. This feature is well complimented by the traditionally styled Georgian barred windows and doors. The Village Hall is versatile enough to suite a number of outdoor building functions, expanding the available living space within your garden. This product will enhance any garden and will be the envy of any neighbour with its natural finish and preserved and maintained will stand as a prominent feature for years to come.
Features
The building is primarily constructed from substantial 44mm or 70mm interlocking logs, each with 18mm T&G (tongue and groove) roofing and a substantial 18mm T&G Floor. The 70mm version provides a higher rate of insulation and added structural stability with an additional timber width of 26mm. The internal eaves are 2.124m ensuring that there is always plenty of head room, that couple with a ridge height of 3.5m creates a spacious feel. The overall size of the building is 5.5m x 4m equating to 22msq, with an internal area of 19.34msq (44mm) and 18.89msq (70mm). A room of this size and roof height is ideal for any summer house, artist’s/architects studio, office or gym to name but a few. The BillyOh Village hall utilises a set of fully double glazed doors with included optional Georgian bars. The six windows used are also double glazed side opening tilt and turn and come in a large size, with the Georgian window bars included.
Construction
With the buildings solid construction method, utilising the traditional method of interlocking logs combined with secure double locking method, maintain the buildings secure feel. The high roof-line made from substantial joists and 18mm thick T&G roof boards provides an internal feel of quality. This coupled with highly detailed crafted windows and doors, provides plenty of ambient natural light proving to be a versatile and luxurious space. The use of cutting edge technology in both the design and manufacturing processes results in a building of very high quality. The Cabin can be assembled over a period of two days, following the provided technical details and general instructions. Upon completion it is imperative that the untreated building is treated with a quality wood preservative to ensure longevity and durability for years to come. It is highly important that the building is treated upon completion and yearly thereafter to ensure durability.
Optional Extras
Please ensure that you take a look at our fantastically priced BillyOh options which include Barrettine Premier Wood Preservatives, Premium Roof Shingles, Cabin Assembly and Shingle Installation.
- Barrettine Premier Wood Preservatives will help maintain the durability of your cabin and protect it from weathering
- Premium Roof Shingles which are colourful, hard wearing and will prevent leaks from the roof. When shingles are installed correctly they will protect your cabin from the elements. The BillyOh Premium Roof Shingles are manufactured from an asphalt and bitumen mixture to a very high standard and are not to be confused with other the less durable shingles available in the market.
- Take away the stress of finding a local builder to assemble your cabin and utilise this great offer on installation ensuring that your cabin is assembled by our assemblers who are used to this product and have plenty of previous experience.
- Once the premium roof shingles are purchased, why not allow skilled labourers to install these ensuring that your building is finished to a high level. See our option for shingle installation.
What’s included?
Please note: The building does not include the decking and/or accessories shown
Please Note: It is always advisable to contact your local Planning Authority to ascertain whether or not planning permission may be required for your garden building.
Substantial 44mm (70mm option) thick timbers and interlocking design
The Village Hall log cabin features an eye-catching interlocking design which provides this building with a stable, secure, rigid structure combined with the thickness of the timber. Log cabin provided with fixing kit ensuring easier assembly.
Spacious interior
Designed with a high roof-line, single glazed double-doors and eight large opening windows ensuring this log cabin has a light, spacious interior. The full width verandah adds yet more versatility to this log cabin. (Note - Veranda is optional).
Double Glazed Doors
The glazed double-doors provide an elegant and versatile opening that allow for furniture or other bulky items. With security paramount this log cabin has a secure in-built locking system to give peace of mind.
Double Glazed Windows
Eight generously proportioned, Double glazed (15mm) opening windows provide light and ventilation, adding to the comfort, usability and sense of satisfaction while using the Village Hall Log Cabin. Please note: Window strips may differ from image shown.
Benefits of 70mm cladding
This log cabin is available with optional 70mm cladding. The benefits of this thicker timber are; improved insulation for greater control of temperature, vastly improved strength and rigidity adding to the structural integrity of the building and so aiding the log cabin's ability to cope with extreme weather conditions.
Premium Tongue and Groove Roof
Premium Tongue and Groove is used for the roofing. Cut to 18mm thick timber with substantial roof supports crafted with precision CNC machining. This ensures improved waterproofing and a flatter surface to allow for easier run-off of rain water.
Premium Tongue and Groove Floor
18mmm Tongue & Groove flooring used to take a greater load capacity and provide better damp proofing ensuring protection of your contents.
Braced Floor
Each of our BillyOh log cabins are supplied with an interlocking tongue and groove floor which is supported with strong floor bearers giving a greater load capacity and reducing any floor bounce
Technical Specifications
Show Measurements as:| Dimensions: | 18 x 18 Inc Verandah (44mm) | 18 x 12 (70mm) |
|---|---|---|
| Width | 550cm 18'1" | 550cm 18'1" |
| Depth | 400cm 13'1" | 400cm 13'1" |
| Ridge Height | 350cm 11'6" | 350cm 11'6" |
| Eaves Height | 212.4cm 7' | 212.4cm 7' |
| Door Opening Size (w x h) | 158.8cm x 190cm 5'3" x 6'3" | 158.8cm x 190cm 5'3" x 6'3" |
| Window Dimensions | 72cm x 125cm 2'4" x 4'1" | 72cm x 125cm 2'4" x 4'1" |
| Glazing Thickness | 0.7cm | 0.7cm |
| Front Roof Overhang | 0cm | 0cm |
| Materials: | 18 x 18 Inc Verandah (44mm) | 18 x 12 (70mm) |
|---|---|---|
| Material | Wood - Pine Wood - Pine | Wood - Pine Wood - Pine |
| Glazing Material | Double Glazed (Glass) Double Glazed (Glass) | Double Glazed (Glass) Double Glazed (Glass) |
| Floor Material | Tongue & Groove Tongue & Groove | Tongue & Groove Tongue & Groove |
| Roof Material | Tongue & Groove Tongue & Groove | Tongue & Groove Tongue & Groove |
| Roof Covering Material | Optional Optional | Optional Optional |
| Features: | 18 x 18 Inc Verandah (44mm) | 18 x 12 (70mm) |
|---|---|---|
| Windows | 8 opening windows 8 opening windows | 8 opening windows 8 opening windows |
| Door Style | Double Fully Glazed Door Double Fully Glazed Door | Double Fully Glazed Door Double Fully Glazed Door |
| Veranda Available? | Yes Yes | No No |
| Cladding Style | Tongue and Groove Interlocking Boards Tongue and Groove Interlocking Boards | Tongue and Groove Interlocking Boards Tongue and Groove Interlocking Boards |
| Overhang Style | Traditional Styled Overhang Traditional Styled Overhang | Traditional Styled Overhang Traditional Styled Overhang |
| Approx. Assembly Time: |
Building Assembly: 1-2 Day assembly based on 2 people with woodworking knowledge
Shingles: 1 Day based on 2 people working Building Assembly: 1-2 Day assembly based on 2 people with woodworking knowledge Shingles: 1 Day based on 2 people working |
Building Assembly: 1-2 Day assembly based on 2 people with woodworking knowledge
Shingles: 1 Day based on 2 people working Building Assembly: 1-2 Day assembly based on 2 people with woodworking knowledge Shingles: 1 Day based on 2 people working |
| Pre-Assembled Side Panels | No No | No No |
| Treatment | Untreated Untreated | Untreated Untreated |
Frequently Asked Questions
-
Q: What is the size and height
A:
Width 550cm
Depth 400cm
Eaves Height 212.4cm
Ridge Height 350cm
Q: hi please could you tell me how much it wood cost to have the log cabin built and installed exactly with decking going round same as picturethanks
A: We do not supply the decking as shown in the photo as this is just for photographic illustration only. Thank you.
Q: Hello,do you ship also to Italy?? and what are conditions?thanksbest regardsFrancesca
A: We can only deliver to mainland UK however we can deliver to a shipping company of your choice in the UK free of charge and they will delivery this item to your area. Thank you.
