BillyOh Pioneer Raleigh Log Cabin

Overall Dimensions A. Width: B. Depth: C. Height: view full specifications
5-10 Working Days Delivery* Only £1,929.95
Total Price: Price includes VAT & FREE Delivery* to most of mainland GB
All delivery times approx.
Some postcodes may have additional delivery times
all sizes contained in product names are approximate
BillyOh Raleigh Log Cabin Multimedia Gallery & Interactive Images

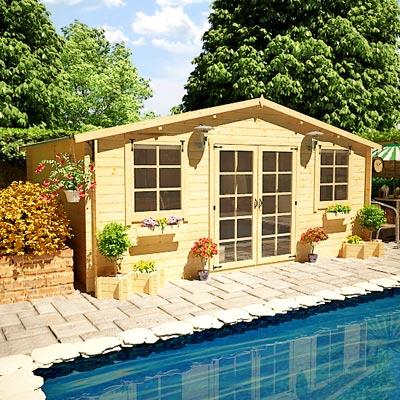

BillyOh Pioneer Raleigh Log Cabin

Overview

The introduction of the BillyOh Pioneer Raleigh Log Cabin has extended the range of BillyOh Pioneer 28mm Log Cabins, establishing BillyOh and Garden Buildings direct further as a leading garden building manufacturer and reseller. As the name would suggest the design explores the experience of previous successful models of cabins to produce this new building. The alpine roof lined design and windows give this cabin the feeling of space and grandeur.

Features

28mm Interlocking Boards - Single T&G for stability and durability.

11mm T&G Floor - Providing pre-assembled T&G boarded floor sections supported by 1” x 2” Floor Joists.

11mm T&G Roof - Providing a T&G boarded roof supported by 2” x 5” Roof Purlins.

Styrene Glazed Doors/Windows - There are 2 Windows, which are bottom opening windows constructed with integral Georgian styled glazing bars. Glazing comes as a single sheet for ease of assembly.

Fully Glazed Style Double Door - These provide plenty of light with integral Georgian glazing bars as standard. Glazing comes as a single sheet for ease of assembly.

Alpine Styled Roof Line - Roofline similar to alpine traditional chalets and ski lodges.

Roofing Felt as Standard - The BillyOh Raleigh comes as standard with all felt covering and fixings as standard at no extra cost. The felt used is a green mineral felt which is of higher grade than cheaper felt types such as sand felt.

Construction

The BillyOh Pioneer Raleigh Log Cabin is constructed primarily of 28mm Interlocking T&G boards, coupled with framing for extra strength and rigidity. Due to the time taken to assemble the floors, this cabin comes with 4 pre assembled floor sections to get straight to the building itself. The doors and windows are crafted in the UK in our own factory, using modern manufacturing and Design techniques. The roof is constructed of 11mm T&G boarding with substantial purlins.

Building Dimensions


Raleigh Log Cabin: Front and Side Elevation Details

Overall External Building Width - Metric: 5.262m/Imperial: 17' 3" (Includes all Overhangs and Verandah Externals).

Overall External Building Depth - Metric: 3.81m/Imperial: 12' 6" (Includes all Overhangs and Verandah Externals).

Overall External Building Ridge Height - Metric: 2.44m/Imperial: 8' 0"

Overall External Building Eaves Height - Metric: 1.756m/Imperial: 5' 9"

Building Internal Width - Metric: 4.745m/Imperial: 15' 7"

Building Internal Depth - Metric: 3.543m/Imperial: 11' 7"

Roof Front Overhang - Metric: 0.01m/Imperial: 0' 0.5"

Door Opening Width - Metric: 1.49m/Imperial: 4' 11"

Door Opening Height - Metric: 1.73m/Imperial: 5' 9"

Easy Assembly and Maintenance

Full Self-assembly instructions are supplied with your order along with all the required fixtures and fittings. Simply place pre-assembled floors together, add the surrounds and place the walls level by level to create your new building.

We recommend you treat the building following construction with a high quality preservative for maximum durability.

PLEASE NOTE: All dimensions stated are approximate and based on the outer external measurements of the Raleigh Log Cabin.


Please Note: It is always advisable to contact your local Planning Authority to ascertain whether or not planning permission may be required for your garden building.


+ Click to enlarge image

Interior

The Pioneer Raleigh log cabin boast a large interior which could act as for example an office, summerhouse, guest house or even be the perfect place to relax after your Christmas dinner!

+ Click to enlarge image

Doors

Beautiful Georgian barred glazed doors crafted in the UK in our own factory allow lots of natural light into to the Pioneer Raleigh log cabin.

+ Click to enlarge image

Windows

The Georgian glazed windows provide light and ventilation adding comfort to this log cabin and are also made in the UK in our own factory using modern manufacturing and design techniques

+ Click to enlarge image

Alpine Styled Roof

The alpine styled roof provides an attractive design feature and providing a high roof line, providing generous height above the head of an adult.

+ Click to enlarge image

Braced Floor

The Pioneer Raleigh log cabin is supplied with an interlocking tongue and groove floor which is supported with strong floor bearers giving a greater load capacity and reducing any floor bounce.

+ Click to enlarge image

T&G Floor & Roof

The Floor of this cabin is pre-assembled in four sections for ease of assembly. The roof is constructed of T&G boards, individually cut to length ready for self assembly.

Technical Specifications

Show Measurements as: We do not provide planning advice, if you are in any doubt please check whether planning permission or building regulations are required before purchase.
Dimensions: 16 x 13
Width 498.7cm 16'4"
Depth 378.5cm 12'5"
Ridge Height 244cm 8'
Eaves Height 1874cm 61'6"
Door Opening Size (w x h) 149cm x 173cm 4'11" x 5'8"
Window Dimensions 67.5cm x 85cm 2'3" x 2'9"
Glazing Thickness 0.15cm
Front Roof Overhang 9.3cm 4"
Materials: 16 x 13
Material Graded European Softwood Graded European Softwood
Glazing Material Styrene Styrene
Floor Material Tongue & Groove Tongue & Groove
Roof Material Tongue & Groove Tongue & Groove
Roof Covering Material Green Mineral Felt Green Mineral Felt
Features: 16 x 13
Windows 2 opening windows 2 opening windows
Door Style Double Semi Glazed Door Double Semi Glazed Door
Veranda Available?
Cladding Style Tongue and Groove Interlocking Boards Tongue and Groove Interlocking Boards
Overhang Style Alpine Style Overhang Alpine Style Overhang
Approx. Assembly Time:
Pre-Assembled Side Panels No No
Treatment Untreated Untreated

Frequently Asked Questions

Ask a question View All FAQs

Log Cabin Features

Most of our Log Cabin Buildings Feature;

Please click the ‘+’ sign to expand the main heading with more information.

All boards are pre-machined to length and they interlock together increasing strength and durability

The timbers in log cabins are substantially thicker including 19mm, 28mm, 44mm and 70mm. This thickness increases the insulation properties of the building and comes in single or double Tongue & Groove depending on timber thickness.

Log cabin boards are naturally finished, ensuring a blank canvas ready for varnishing, painting or treating in any colour desired.

Treating the building is required to conform to the warranty and to maintain the building. Wood stains are available in 4 colours for each product; Cedar Red, Harvest Gold, Ever Green and Dark Brown.

Log Cabins are supplied with either; Solid Sheet, T&G Pre-Assembled sections or Individual T&G board floors. T&G floors are more heavy duty and of premium quality.

Log Cabins are supplied with either; Solid Sheet, T&G Pre-Assembled sections or Individual T&G board roofs. T&G roofs are more heavy duty and premium quality.

Cabins are glazed using either; Styrene, Single Glazed Glass or Double Glazed Glass. Double glazing is the most premium.

The BillyOh Playhouses, Pathfinders, Frontiers and Pioneers all come as standard with green mineral felt. Those that do not come as standard include this as an optional extra.

Premium roofing shingles are available on a selection of the buildings. These are available in Green, Grey, Black and Red Tiles.

Due to the individual boards construction, assembly time is more time consuming, why not add our assembly service if available in your area.

All buildings come with screws, glazing and ironmongery required for assembly

Each building comes with stage by stage instructions, with individual part identification and cutting lists.

Buildings with an offset door and window can be reversed so that the door is on either the left or the right. Providing that the window side is the same length as the plain side the windows can be placed either side.

BillyOh Playhouses, Pathfinder, Frontier and Pioneer ranges are both manufactured and designed in the UK. The remaining buildings have been designed in the UK.

Log Cabin Dimensions

Simply choose the relevant size of the building from the drop down to view the overall dimensions.

  • Overall
  • A. Ridge Height:
  • B. Eaves Height:
  • C. Width:
  • D. Depth:
  • E. Door Height:
  • F. Door Width:
