BillyOh Pioneer Darwin Log Cabin

Overall Dimensions A. Width: B. Depth: C. Height: view full specifications
5-10 Working Days Delivery* Only £2,499.95
Total Price: Price includes VAT & FREE Delivery* to most of mainland GB
All delivery times approx.
Some postcodes may have additional delivery times
all sizes contained in product names are approximate
BillyOh Darwin Log Cabin Multimedia Gallery & Interactive Images

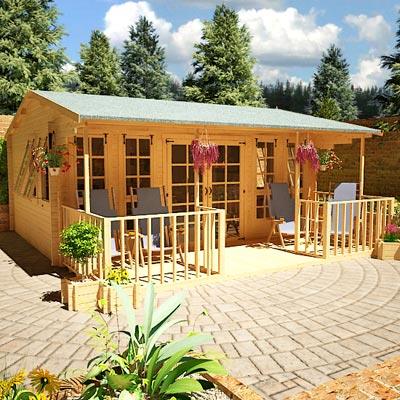

BillyOh Pioneer Darwin Log Cabin

Overview

The range of BillyOh Pioneer 28mm Log cabins has increased in size, with a further building edition being the BillyOh Pioneer Darwin Log Cabin. As the name would suggest the design and evolution of this log cabin has been from a multitude of successful predecessors. The traditional design with integrated verandah and long windows give this cabin a distinct aesthetic appeal and grandeur to be the envy of any next door neighbour.


The BillyOh Pioneer range has evolved on the already successful BillyOh Pathfinder and Frontier ranges. This Log Cabin can be used for a multitude of uses from a stylish modern office through to a classic summerhouse. The mix of the log windows and fully glazed door ensure that there will be no shortage of light creating a warm ambiance inside. The impressive verandah is partially covered, with an elegant entrance ensuring that the inside and outside work in balance. The overhang allows shade during those occasional yet sort after hot days and protection from the all too frequent light to heavy showers.

Features

28mm Interlocking Boards - Single T&G for stability and durability.

11mm T&G Floor - Providing pre-assembled T&G boarded floor sections supported by 1” x 2” Floor Joists.

11mm T&G Roof - Providing a T&G boarded roof supported by 2” x 5” Roof Purlins.

Styrene Glazed Doors/Windows - There are a total of 8 windows; 2 Windows on each side, which are bottom opening windows; 4 windows on the front, which have a fixed bottom section and bottom opening section; all are constructed with integral Georgian styled glazing bars. Glazing comes as a single sheet for ease of assembly.

Fully Glazed Style Double Door - These provide plenty of light with integral Georgian glazing bars as standard. Glazing comes as a single sheet for ease of assembly.

Included Overhung Verandah - Provides an external outdoor space ideal for outdoor entertaining using a picket fence styled verandah complimenting the style of the main building.

Traditional Styled Roof Line - Roofline similar to tradtional English houses.

Front Overhang - This provides both shade from the sun, and cover during the frequent summer rain showers.

Roofing Felt as Standard - The BillyOh Pioneer Darwin comes as standard with all felt covering and fixings as standard at no extra cost. The felt used is a green mineral felt which is of higher grade than cheaper felt types such as sand felt.

Construction

The BillyOh Pioneer Darwin is constructed primarily of 28mm Interlocking T&G boards, coupled with framing for extra strength and rigidity. Due to the time taken to assemble the floors, this cabin comes with 4 pre assembled floor sections to get straight to the building itself. The doors and windows are crafted in the UK in our own factory, using modern manufacturing and Design techniques. The verandah is pre assembled in parts which include the floor and the side rails for your convenience. The roof is constructed of 11mm T&G boarding with substantial purlins.


This BillyOh log cabin benefits largely from a substantial front verandah which completes the building and ensures total privacy. The Verandah dimensions - Width – 474cm, Height – 183cm, Rail height – 81.5cm, Depth – 177cm

Building Dimensions


Darwin Log Cabin: Front and Side Elevation Details

Overall External Building Width - Metric: 5.01m/Imperial: 16' 5" (Includes all Overhangs and Verandah Externals).

Overall External Building Depth - Metric: 5.465m/Imperial: 17' 11" (Includes all Overhangs and Verandah Externals).

Overall External Building Ridge Height - Metric: 2.505m/Imperial: 8' 3"

Overall External Building Eaves Height - Metric: 1.809m/Imperial: 5' 11"

Building Internal Width - Metric: 4.745m/Imperial: 15' 7"

Building Internal Depth - Metric: 3.543m/Imperial: 11' 7"

Roof Front Overhang - Metric: 1.388m/Imperial: 4' 7"

Door Opening Width - Metric: 1.49m/Imperial: 4' 11"

Door Opening Height - Metric: 1.73m/Imperial: 5' 9"

Verandah Internal Floor Width - Metric: 4.657m/Imperial: 15' 3"

Verandah Internal Floor Depth - Metric: 1.726m/Imperial: 5' 8"

What’s included?

  • All the 28mm Boards, Additional Framing, Partially assembled Doors and Windows,
  • Pre-Assembled Floor and Verandah Floor Sections
  • Pre- Assembled Verandah Rails
  • Green Mineral Felt
  • All Fixings
  • A Technical & Stage by stage Building Guide

    • Easy Assembly and Maintenance

    Full Self-assembly instructions are supplied with your order along with all the required fixtures and fittings. Simply place pre-assembled floors together, add the surrounds and place the walls level by level to create your new building.

    We recommend you treat the building following construction with a high quality preservative for maximum durability.

    PLEASE NOTE: All dimensions stated are approximate and based on the outer external measurements of the Log Cabin.


    Please Note: It is always advisable to contact your local Planning Authority to ascertain whether or not planning permission may be required for your garden building.



    + Click to enlarge image

    Verandah

    This log cabin boasts a large verandah suitable for relaxing on during a hot summer’s day or entertaining guests on a beautiful moonlit evening.

    + Click to enlarge image

    Doors

    Beautiful Georgian barred glazed doors allow lots of natural light into to cabin and open outwards onto the large integrated verandah.

    + Click to enlarge image

    Windows

    With a mix of long and standard sized windows the Pioneer Darwin log cabin is full of natural light creating a warm ambiance inside.

    + Click to enlarge image

    Overhang

    The overhang partially covers the impressive verandah providing shade from sun and rain showers all year round.

    + Click to enlarge image

    Interior

    The spacious light interior provides ample space for an office, summerhouse or even games room.

    + Click to enlarge image

    Braced floor

    The Pioneer Darwin log cabin is supplied with an interlocking tongue and groove floor which is supported with strong floor bearers giving a greater load capacity and reducing any floor bounce.

    Technical Specifications

    Show Measurements as: We do not provide planning advice, if you are in any doubt please check whether planning permission or building regulations are required before purchase.
    Dimensions: 16 x 18
    Width 498.7cm 16'4"
    Depth 546.2cm 17'11"
    Ridge Height 251cm 8'3"
    Eaves Height 197.4cm 6'6"
    Door Opening Size (w x h) 149cm x 173cm 4'11" x 5'8"
    Window Dimensions 42cm x 150cm 1'5" x 4'11"
    Glazing Thickness 0.15cm
    Front Roof Overhang 129.5cm 4'3"
    Materials: 16 x 18
    Material Graded European Softwood Graded European Softwood
    Glazing Material Styrene Styrene
    Floor Material Tongue & Groove Tongue & Groove
    Roof Material Tongue & Groove Tongue & Groove
    Roof Covering Material Green Mineral Felt Green Mineral Felt
    Features: 16 x 18
    Windows 8 opening windows 8 opening windows
    Door Style Double Fully Glazed Door Double Fully Glazed Door
    Veranda Available?
    Cladding Style Tongue and Groove Interlocking Boards Tongue and Groove Interlocking Boards
    Overhang Style Traditional Styled Overhang Traditional Styled Overhang
    Approx. Assembly Time:
    Pre-Assembled Side Panels No No
    Treatment Untreated Untreated

    Frequently Asked Questions

    Ask a question View All FAQs

    Log Cabin Features

    Most of our Log Cabin Buildings Feature;

    Please click the ‘+’ sign to expand the main heading with more information.

    All boards are pre-machined to length and they interlock together increasing strength and durability

    The timbers in log cabins are substantially thicker including 19mm, 28mm, 44mm and 70mm. This thickness increases the insulation properties of the building and comes in single or double Tongue & Groove depending on timber thickness.

    Log cabin boards are naturally finished, ensuring a blank canvas ready for varnishing, painting or treating in any colour desired.

    Treating the building is required to conform to the warranty and to maintain the building. Wood stains are available in 4 colours for each product; Cedar Red, Harvest Gold, Ever Green and Dark Brown.

    Log Cabins are supplied with either; Solid Sheet, T&G Pre-Assembled sections or Individual T&G board floors. T&G floors are more heavy duty and of premium quality.

    Log Cabins are supplied with either; Solid Sheet, T&G Pre-Assembled sections or Individual T&G board roofs. T&G roofs are more heavy duty and premium quality.

    Cabins are glazed using either; Styrene, Single Glazed Glass or Double Glazed Glass. Double glazing is the most premium.

    The BillyOh Playhouses, Pathfinders, Frontiers and Pioneers all come as standard with green mineral felt. Those that do not come as standard include this as an optional extra.

    Premium roofing shingles are available on a selection of the buildings. These are available in Green, Grey, Black and Red Tiles.

    Due to the individual boards construction, assembly time is more time consuming, why not add our assembly service if available in your area.

    All buildings come with screws, glazing and ironmongery required for assembly

    Each building comes with stage by stage instructions, with individual part identification and cutting lists.

    Buildings with an offset door and window can be reversed so that the door is on either the left or the right. Providing that the window side is the same length as the plain side the windows can be placed either side.

    BillyOh Playhouses, Pathfinder, Frontier and Pioneer ranges are both manufactured and designed in the UK. The remaining buildings have been designed in the UK.

    Log Cabin Dimensions

    Simply choose the relevant size of the building from the drop down to view the overall dimensions.

    • Overall
    • A. Ridge Height:
    • B. Eaves Height:
    • C. Width:
    • D. Depth:
    • E. Door Height:
    • F. Door Width:
